Product Overview
Common Use	Herbicides, Fungicides, Insecticides
Applicator	Boom Mounted
Technology	Elliptical Orifice
Spray Angle	110°
Pattern	Tapered Flat Fan
Pressure Range	2 - 4 Bar

Flat Fan Nozzles

Tapered flat fan nozzles produce a narrow, oval spray pattern with tapered ends. Spray volumes are higher in the centre and lower at the edges of the pattern making these nozzles suited to use when overlapped on a spray boom.

Flat Fan Nozzle Spray Pattern
	Elliptical Spray Pattern with Tapered Edges and Fine - Medium Sized Droplets



The nozzles are designed for downwards spraying for broadcast applications of herbicides and insecticides. When used on a mini-boom they will achieve an even spray distribution of 1 - 4 metres across.

Flat fan nozzle with a fine spray quality are suitable for applications of herbicides and insecticides. Fine to medium spray quality nozzles can also be used for fungicide and fertiliser applications. Nozzles with a coarse spray quality are suited to spot spraying of large weeds and broadcast spraying of biological pest controls.

---

Flat Fan Nozzle Details

Please select your size/colour option from the drop-down at the top of the page.

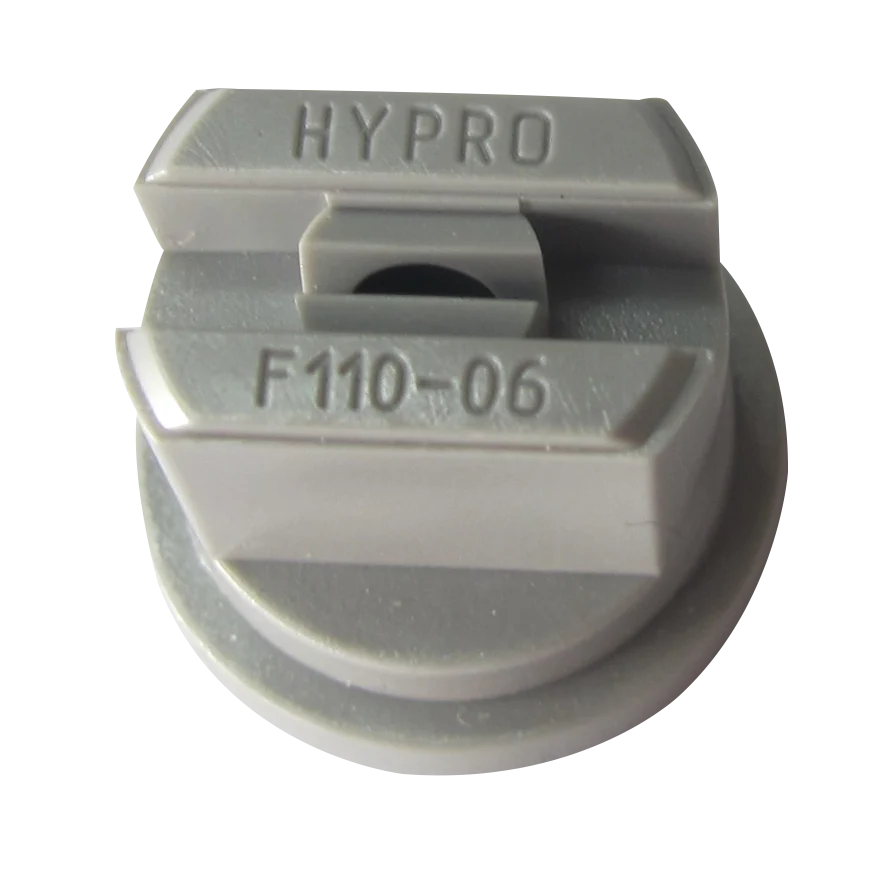

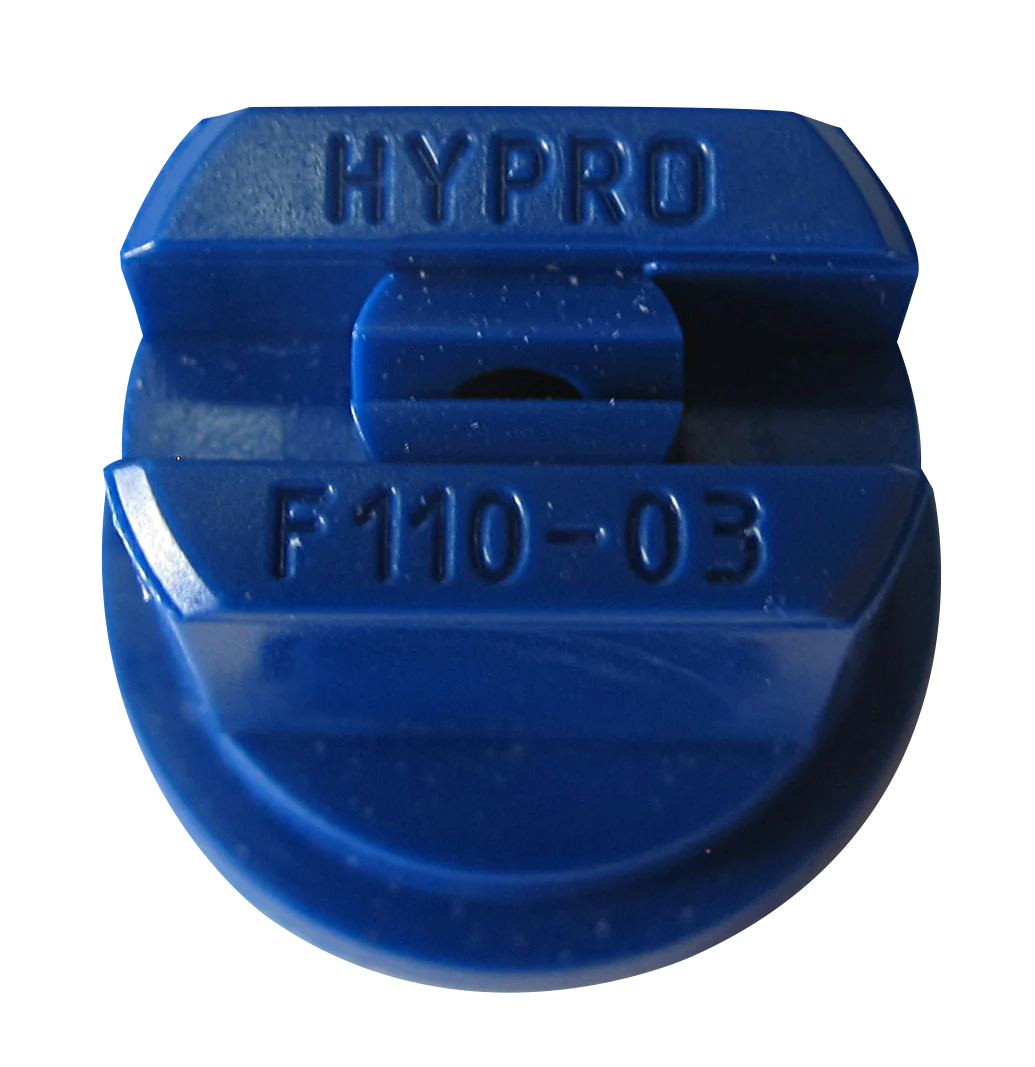

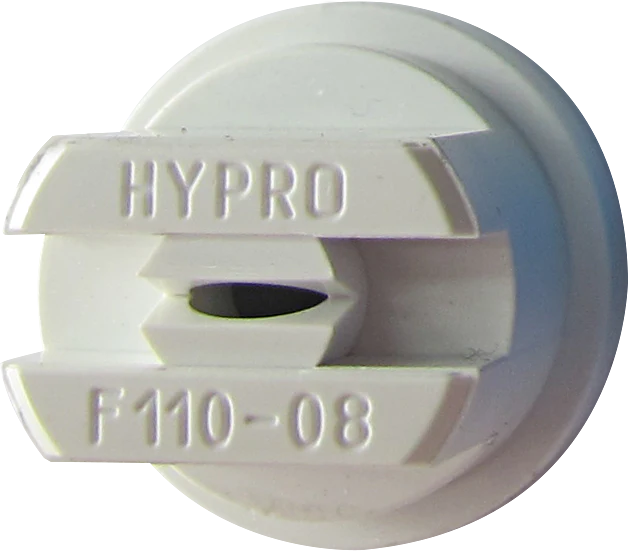

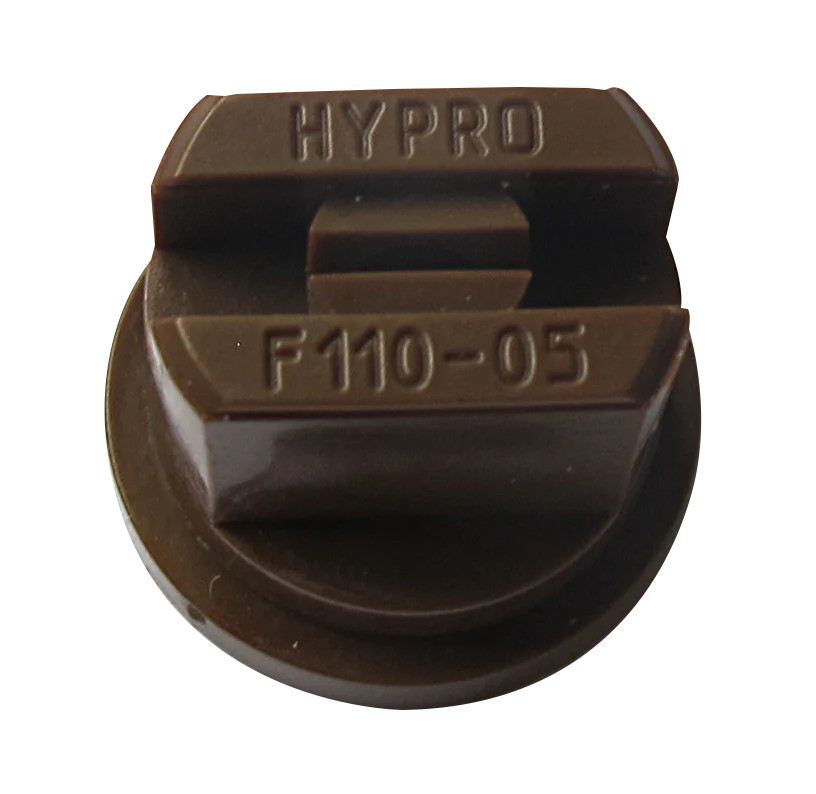

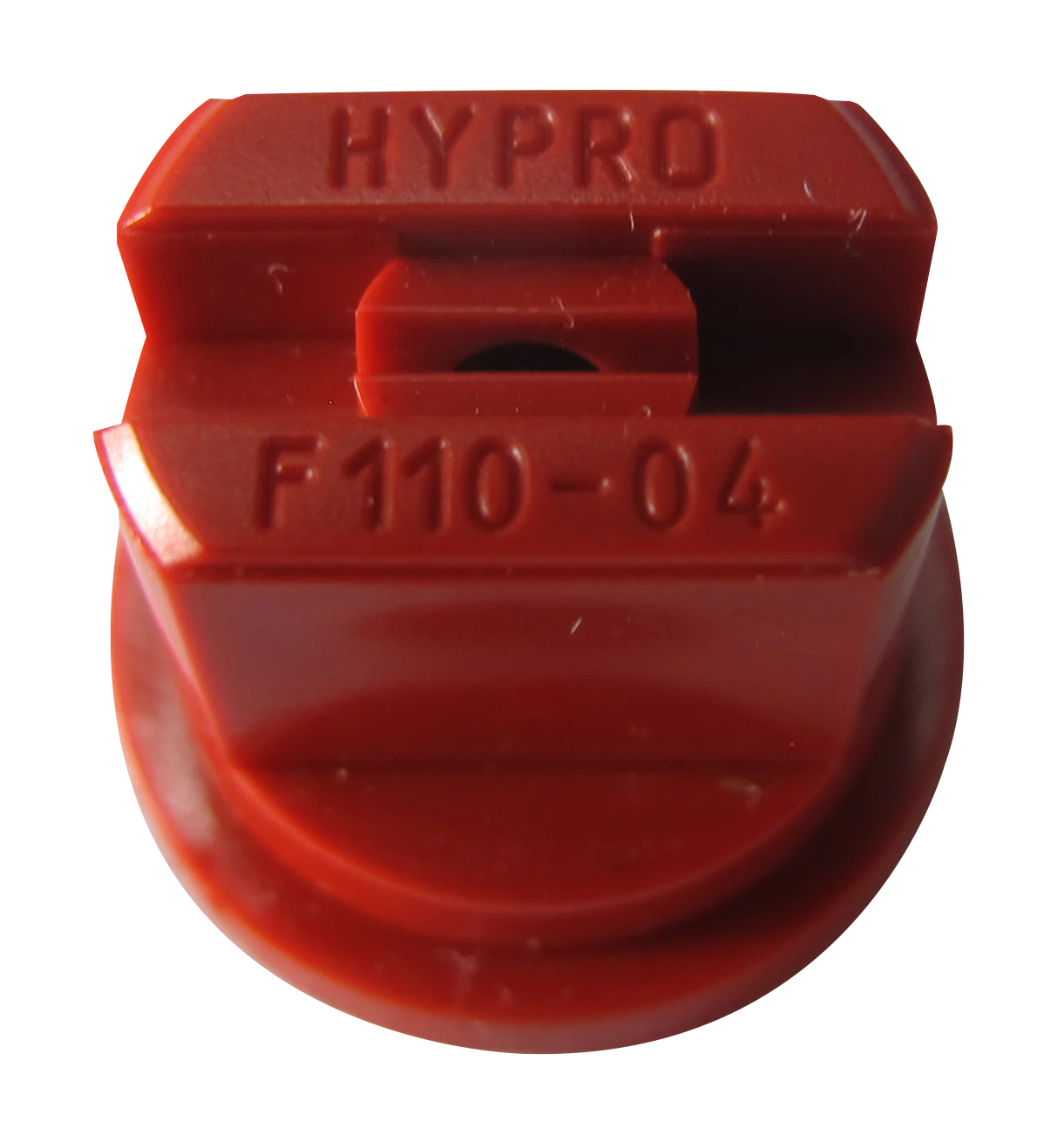

Nozzle Image	Nozzle Size	Use	Application Equipment	Spray Angle	Pressure (Bar)	Droplet Size	Flow Rate (L/m)	Application Rate (L/ha)
Green	F110-015	Herbicides & Insecticides	Boom Mounted	110°	2	Fine	0.5	39
					3	Fine	0.6	48
					4	Fine	0.7	55
Yellow	F110-02	Herbicides & Insecticides	Boom Mounted	110°	2	Fine	0.7	52
					3	Fine	0.8	64
					4	Fine	0.9	74
Blue	F110-03	Herbicides & Insecticides	Boom Mounted	110°	2	Fine	1.0	78
					3	Fine	1.2	96
					4	Fine	1.4	111
Red	F110-04	Herbicides & Insecticides	Boom Mounted	110°	2	Medium	1.3	105
					3	Fine	1.6	128
					4	Fine	1.9	148
Brown	F110-05	Herbicides & Insecticides	Boom Mounted	110°	2	Medium	1.6	130
					3	Fine	2.0	160
					4	Fine	2.3	185
Grey	F110-06	Herbicides, Fungicides, Fertilisers & Insecticides	Boom Mounted	110°	2	Medium	2.0	157
					3	Medium	2.4	192
					4	Fine	2.8	222
White	F110-08	Herbicides, Fungicides, Fertilisers & Insecticides	Boom Mounted	110°	2	Medium	2.6	209
					3	Medium	3.2	256
					4	Fine	3.7	296
Light Blue	F110-10	Herbicides (large, broad-leaved weeds) & Biological Pest Control	Boom Mounted	110°	2	Medium	3.3	262
					3	Medium	4.0	320
					4	Medium	4.6	370

Application rate for nozzle sizes stated at 15 km/h forwards speed.
